CORTEX automatic optical inspection camera scanning components

Product · Automatic Optical Inspection

Intelligent inspection at production speed

CORTEX is ADH's range of high-speed intelligent AOI machines, built on four main competitive technologies, with a user-friendly interface.

CORTEX inspection software showing wire bond defect detection with frame map results

Inspection applications

01Miniature components and lenses
02Printed display panels and LEDs
03IC wire bonds
04Precision die-cut parts
053D parts

Core technologies

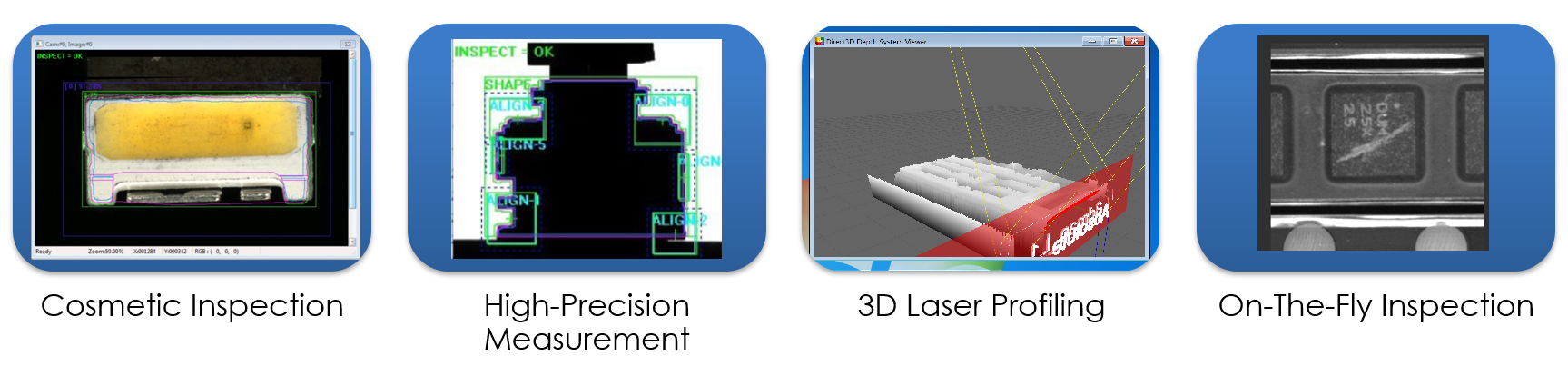

Four CORTEX core technologies: cosmetic inspection, high-precision measurement, 3D laser profiling and on-the-fly inspection

Detectable defects

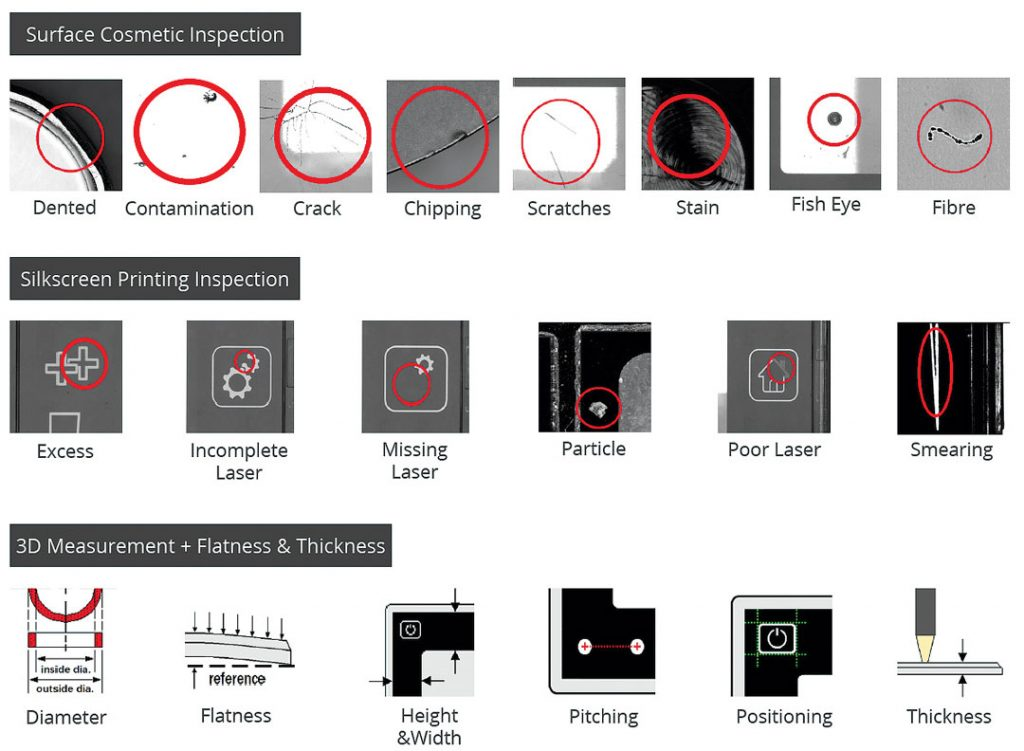

Defect catalogue: surface cosmetic defects, silkscreen printing defects, and 3D measurement of diameter, flatness, height, pitching, positioning and thickness

3D 6-sides high speed on-the-fly AOI

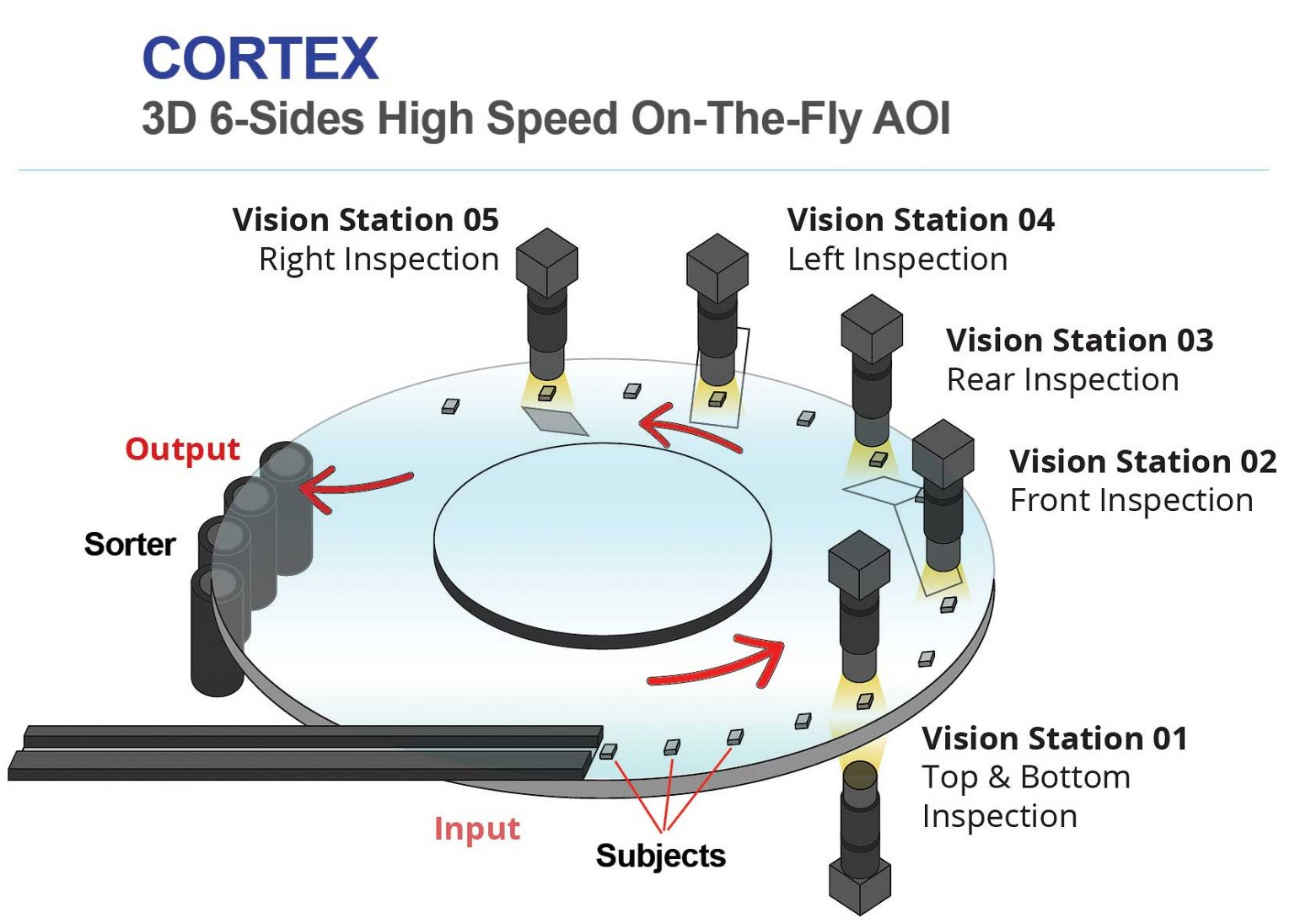

CORTEX glass turret layout with five vision stations inspecting top, bottom, front, rear, left and right sides before sorting

Product range

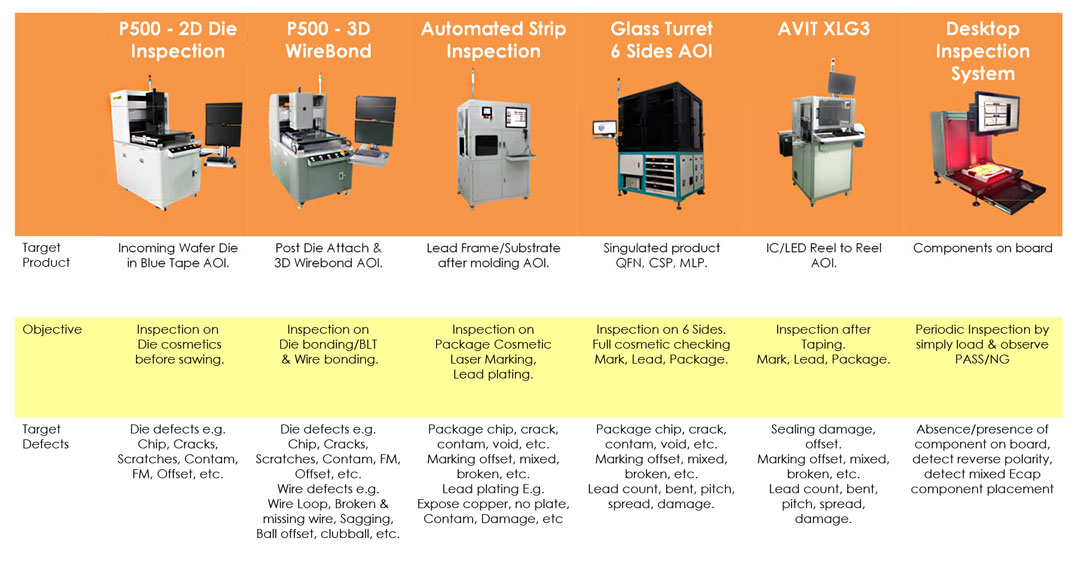

CORTEX product range comparison: P500 2D die inspection, P500 3D wirebond, automated strip inspection, glass turret 6 sides AOI, AVIT XLG3 and desktop inspection system

Technical support

Need a specification or a quote?

Talk to our engineers about materials, tooling, and machine capability.

Download CORTEX Product Range (PDF)Send an Enquiry
