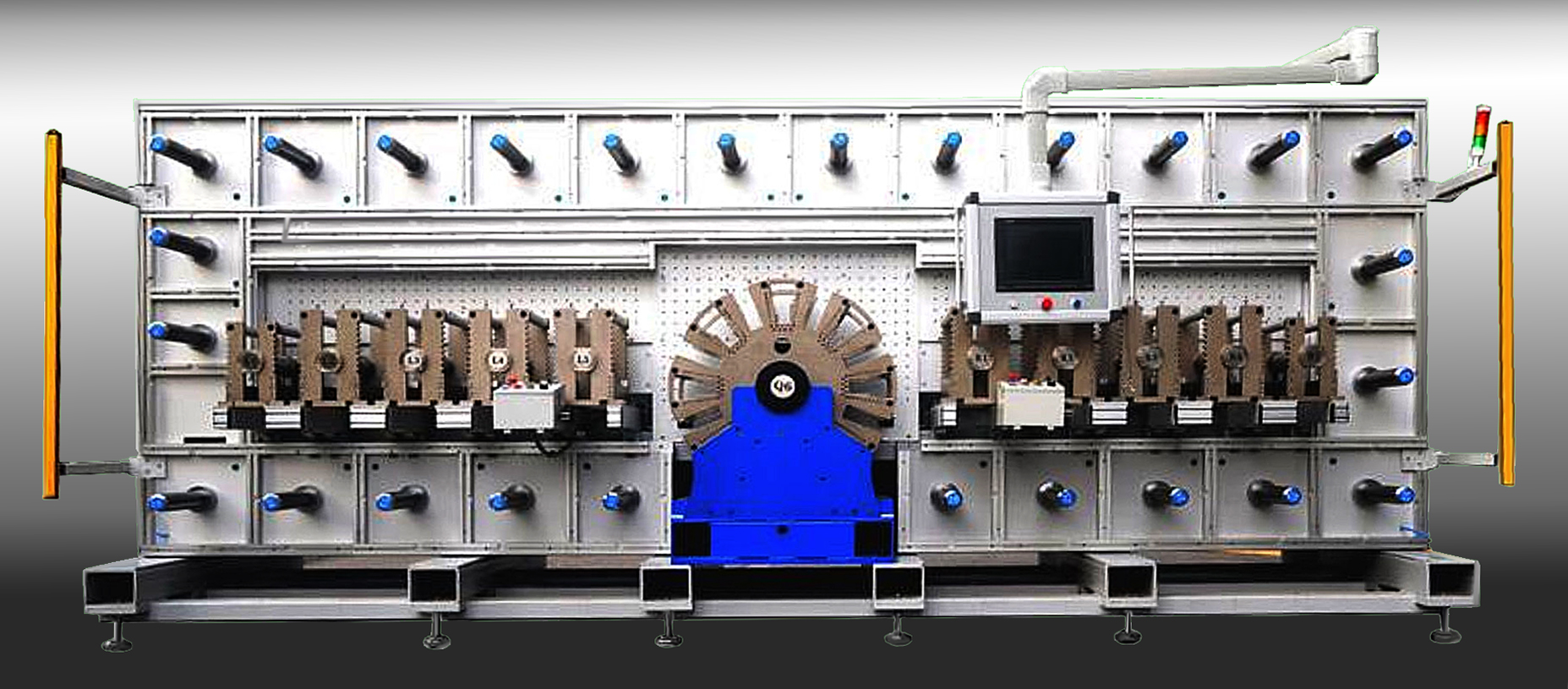

Multi-station rotary die-cutting machine with rotary die head and unwind shafts

Solutions

Rotary and flatbed converting, engineered for precision

The most efficient converting processes run on multi-stage rotary die-cut machines or flatbed die-cut and lamination machines. ADH supplies both — and backs them with process design consultation and tooling fabrication services for rotary and flatbed alike.

The MATSAVE breakthrough

In 2015, ADH launched the MATSAVE Series: a new concept in material- and labor-saving converting machines. Compared to conventional methods, MATSAVE saves 50–90% of material cost — making ADH a true complete solutions provider for the precision converting industries.

Applications

Precision die-cut parts for smartphones, edge tapes, gap spacers, and multi-layered laminated components.

Machines

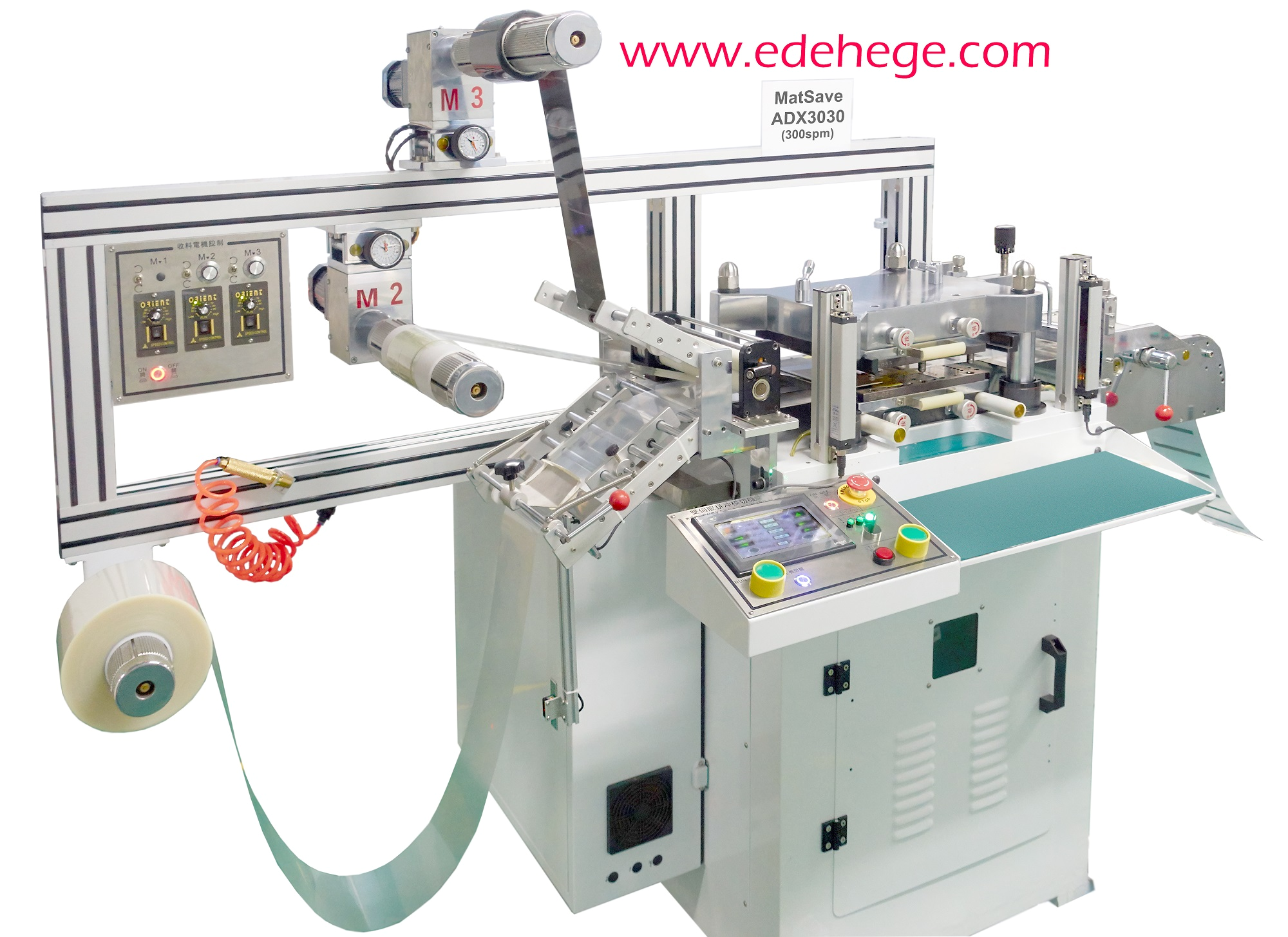

MATSAVE ADX3030 flatbed die-cutting machine with three motorised rewind shafts and touchscreen control — MATSAVE ADX3030 flatbed

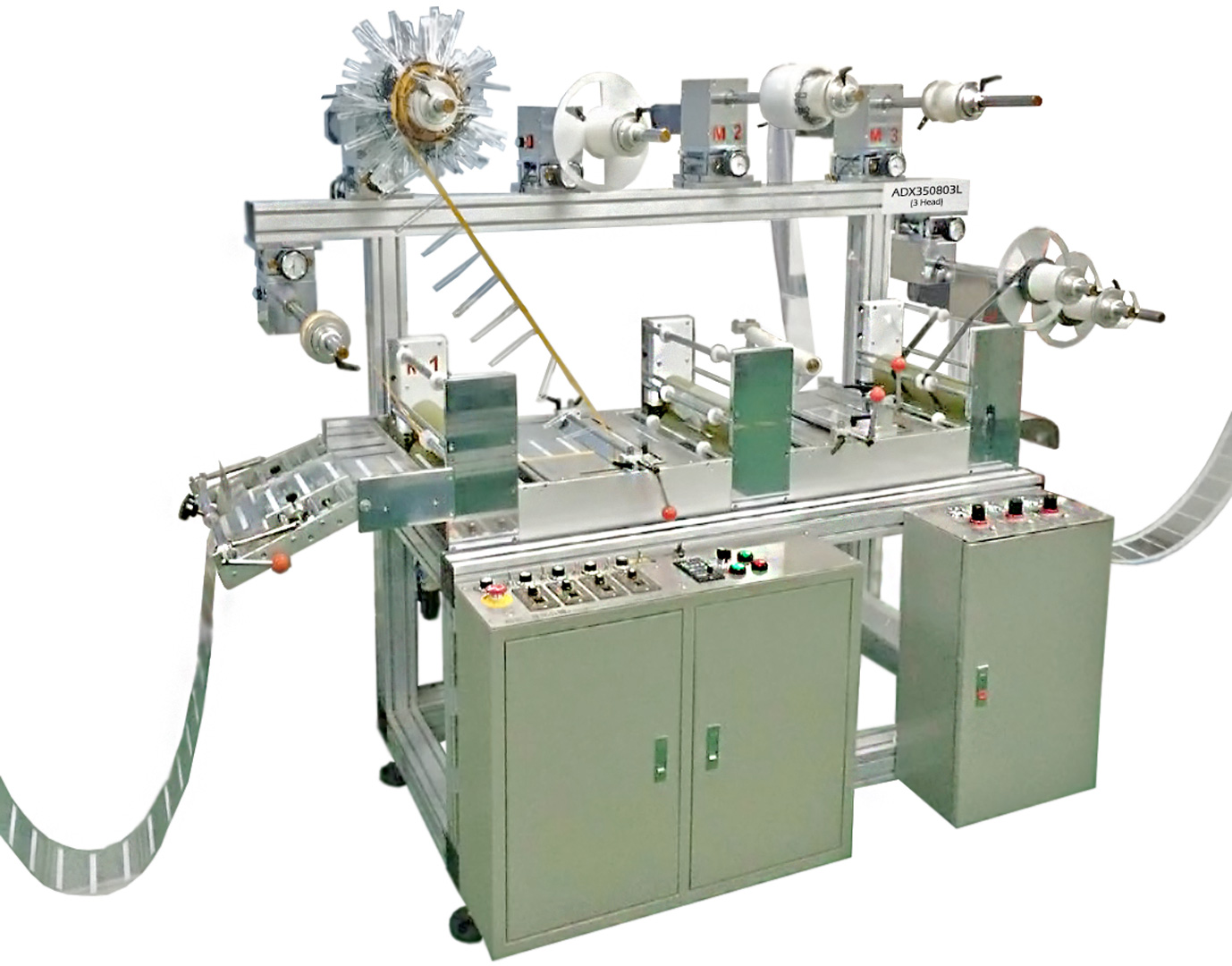

ADX350803L three-head laminating and die-cutting machine with rotary die and multiple unwind stations — ADX350803L three-head line

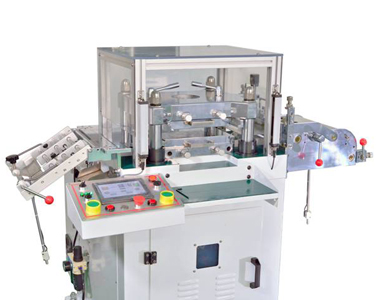

Compact enclosed die-cutting station with safety guard and operator control panel — Compact die-cut station

Die-cut parts

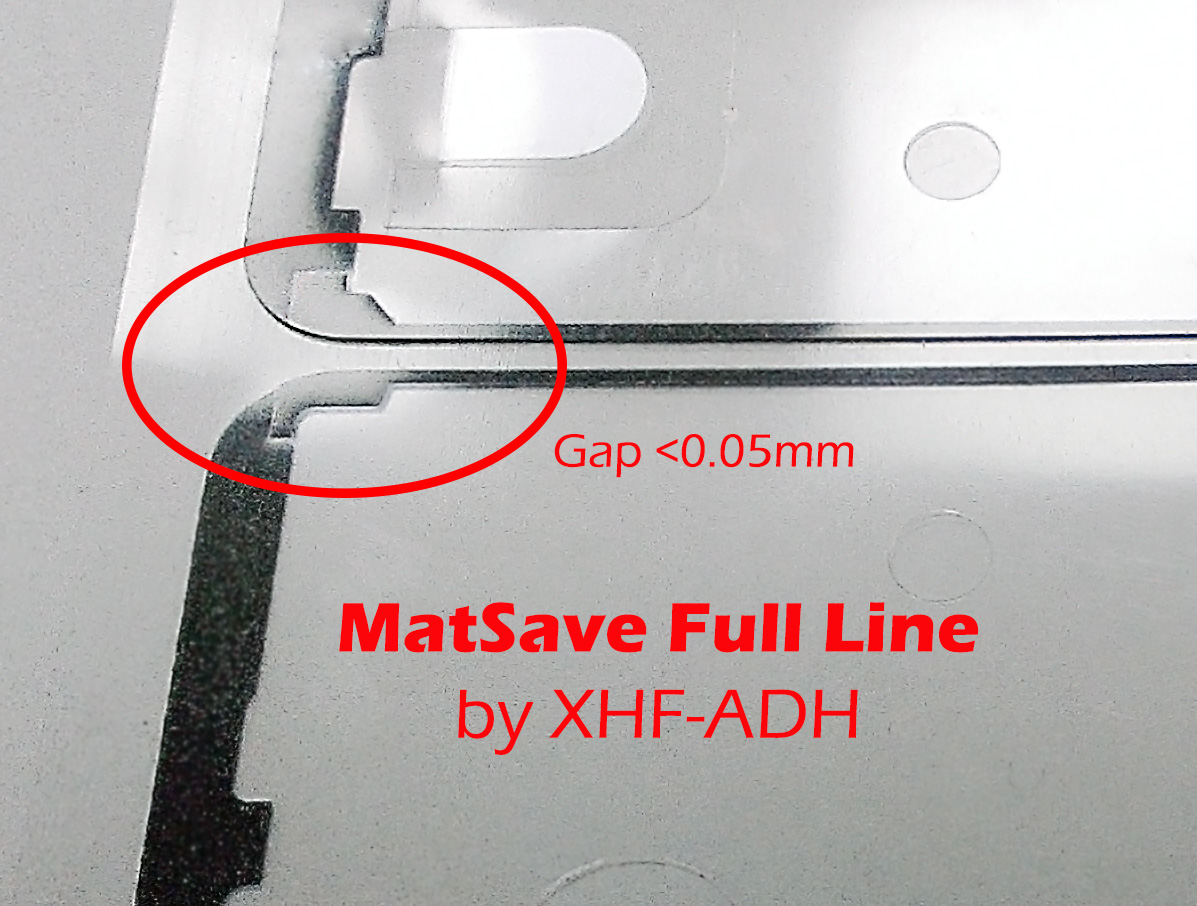

Close-up of a die-cut frame part showing a joint gap of less than 0.05mm — Sub-0.05mm gap accuracy

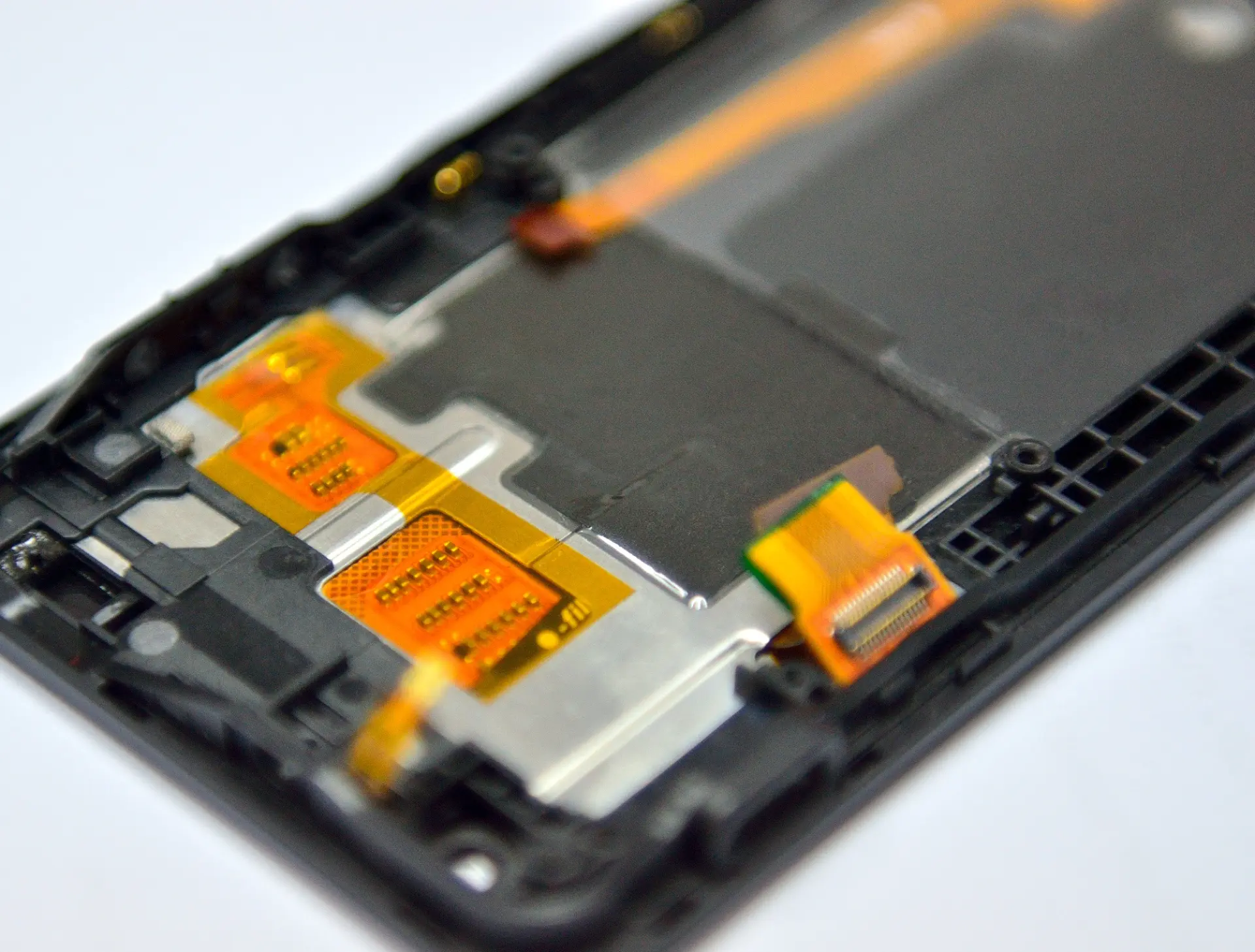

Smartphone frame assembly with die-cut adhesive layers and flexible printed circuits — Smartphone module assembly

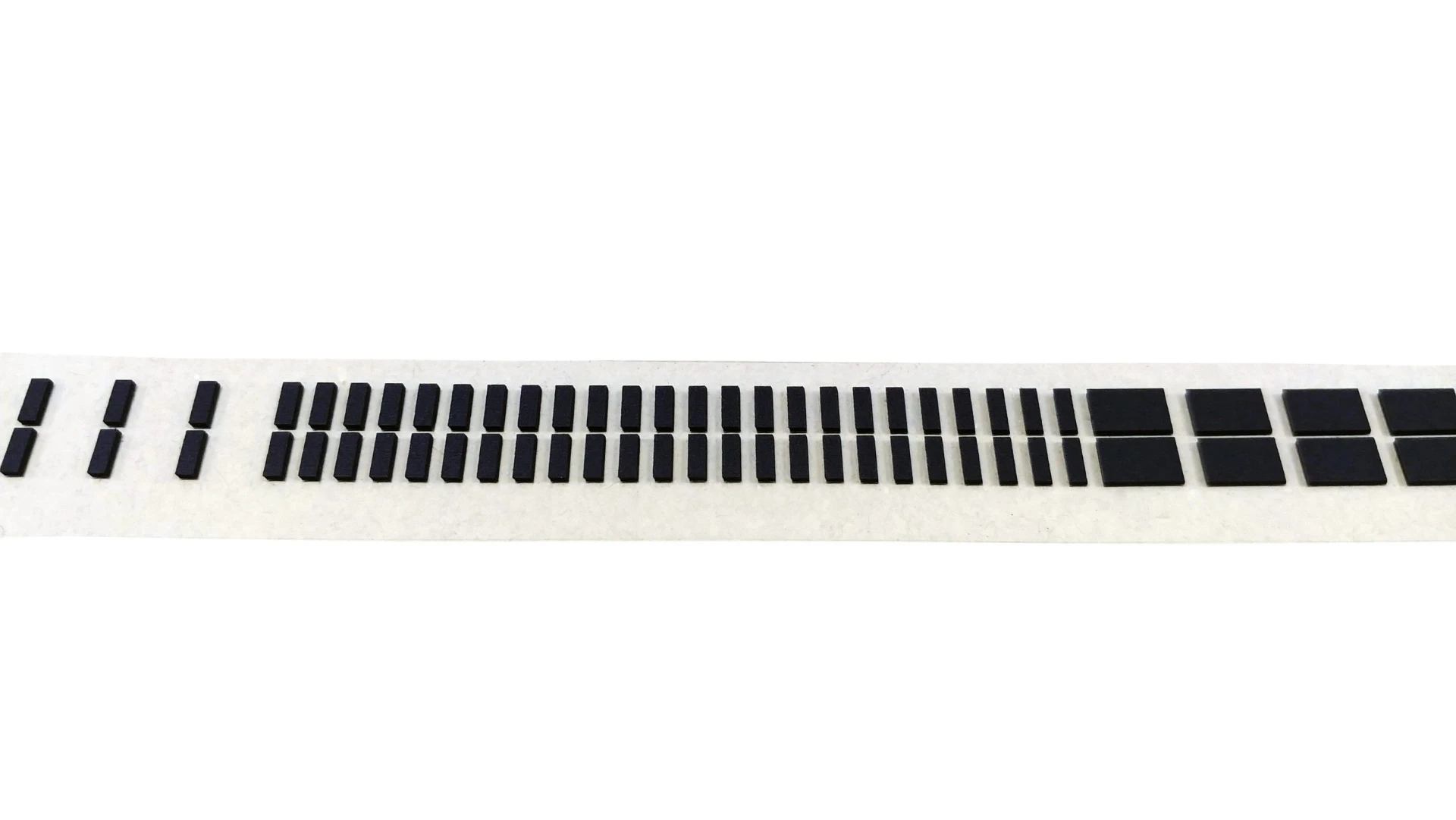

Continuous carrier strip of small black die-cut foam parts in graduated sizes — Die-cut parts on carrier

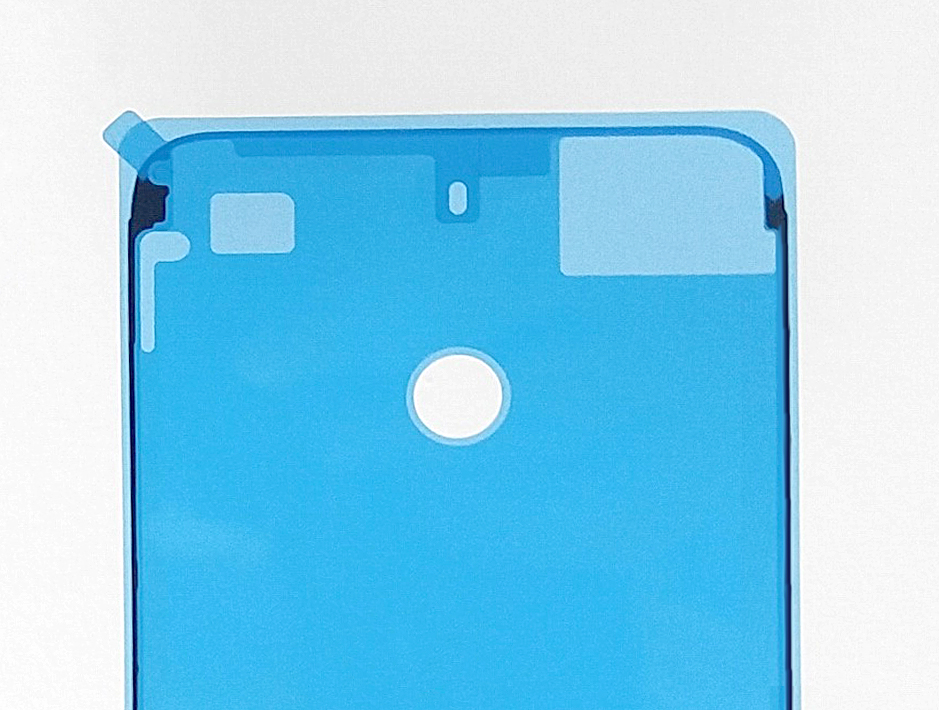

Blue die-cut display frame gasket with cut-outs for camera and sensors — Display frame gasket

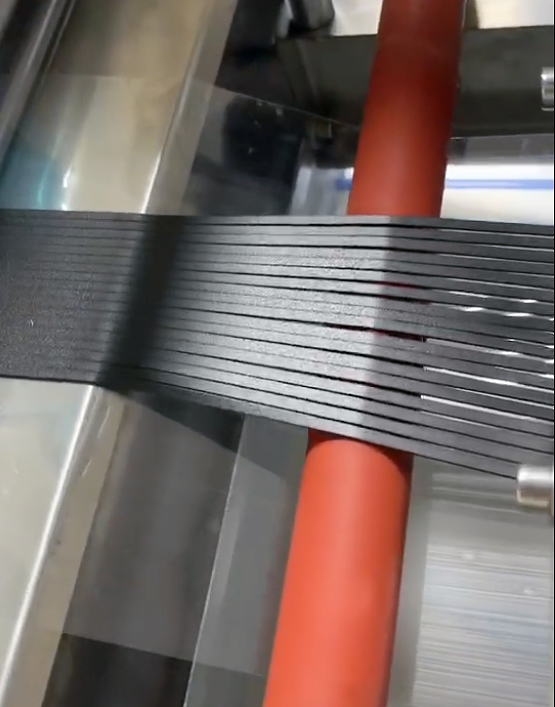

Narrow die-cut black strips running over a red roller inside a converting machine — Multi-lane strip converting

Technical support

Need a specification or a quote?

Talk to our engineers about materials, tooling, and machine capability.
