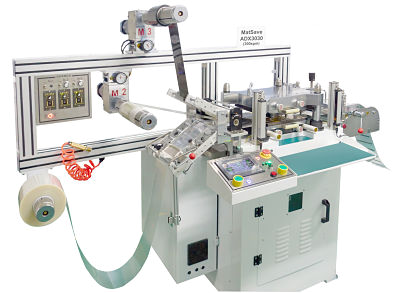

MATSAVE ADX3030 flatbed die-cutting machine with roll feed and rewind shafts

Product · Flatbed Converting Machines

Material-saving flatbed die-cut machines

MATSAVE machines are built for multi-layered material converting and are ideal for medium-quantity production jobs. The MATSAVE version delivers material saving for gap/spacing- prominent parts — saving 50–90% of material cost versus conventional methods.

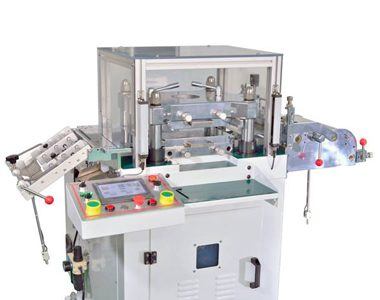

Compact MATSAVE die-cutting station with touch panel control and safety guard

Specifications

Platform sizes	Compact 200(IN) × 180 mm · Mid-size 300(IN) × 300 mm · Large 420(IN) × 420 mm
Speed	Up to 300 strokes per minute (SPM)
Feeding tolerance	Below 0.1 mm
Die tool compatibility	All flatbed die tool types — etched, engraved, steel rule, compound, QDC

Features

01Full safety design
02Input tension guide
03Programmed in local language, color touch panel
04Automatic oil lubrication
05Spot (eye mark) tracking sensor
06Line coordination (start–stop) sensors with material presence detection
07Non-tension automatic unwind and rewind system
08Works automatically in line with any other machines
09Low operating noise and floor vibration

Machines in operation

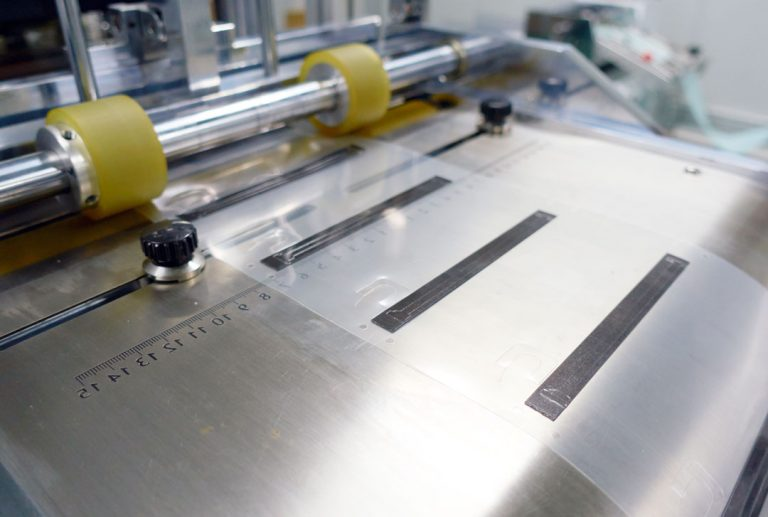

Close-up of the MATSAVE flatbed die-cut platform with clear film and steel rule dies — Flatbed die platform

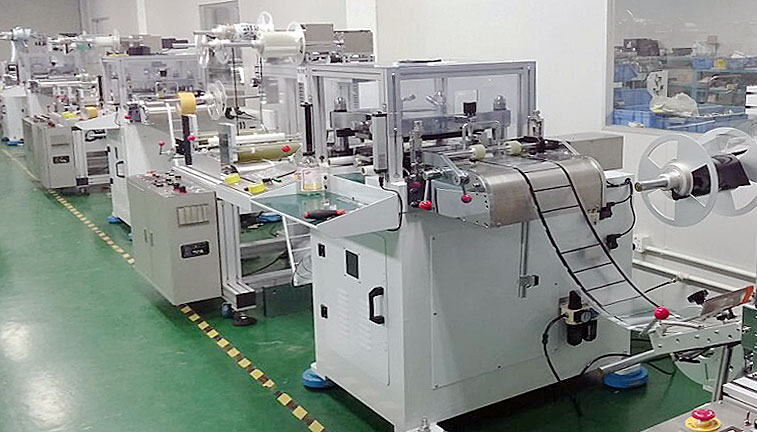

In-line MATSAVE converting line with multiple die-cut and lamination stations — In-line converting line

Compact MATSAVE die-cutting station with HMI and safety guard — Compact die-cut station

Technical support

Need a specification or a quote?

Talk to our engineers about materials, tooling, and machine capability.

Download MATSAVE 3030 Catalogue (PDF)Send an Enquiry
